لوحة تطوير CH367 ، واجهة ISA و PCI لواجهة الحافلة PCIE ، CH367

$63.90

القسم: عروض متنوّعة

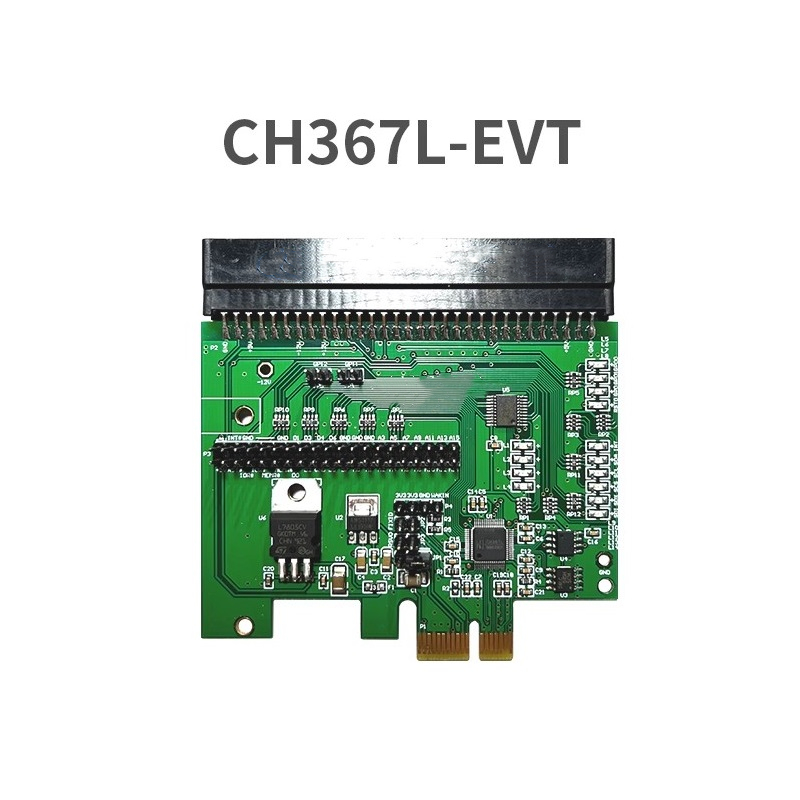

P1 is the PCIe bus that plugs directly into the computer's PCIe slot. P2 is the 8-bit ISA slot. P3 is the control bus, data bus, and address bus pinout on the local side of the CH367 chip. P4 is the power, ground, and WAKIN signal pinout. U1(CH367) PCIe interface chip. U2(ASM1117) LDO is regulated to 1.8V to provide power for CH367 core. U3(24C02) I2C interface EEPROM to customize VID, DID, etc.. U4(25F512) SPI interface FLASH saves application data. U5(74LS273) 8-bit data/address latch, used to latch the data of I/O port, only the lower 4 bits are used. U6(7805) LDO regulates to 5V. JP1…
